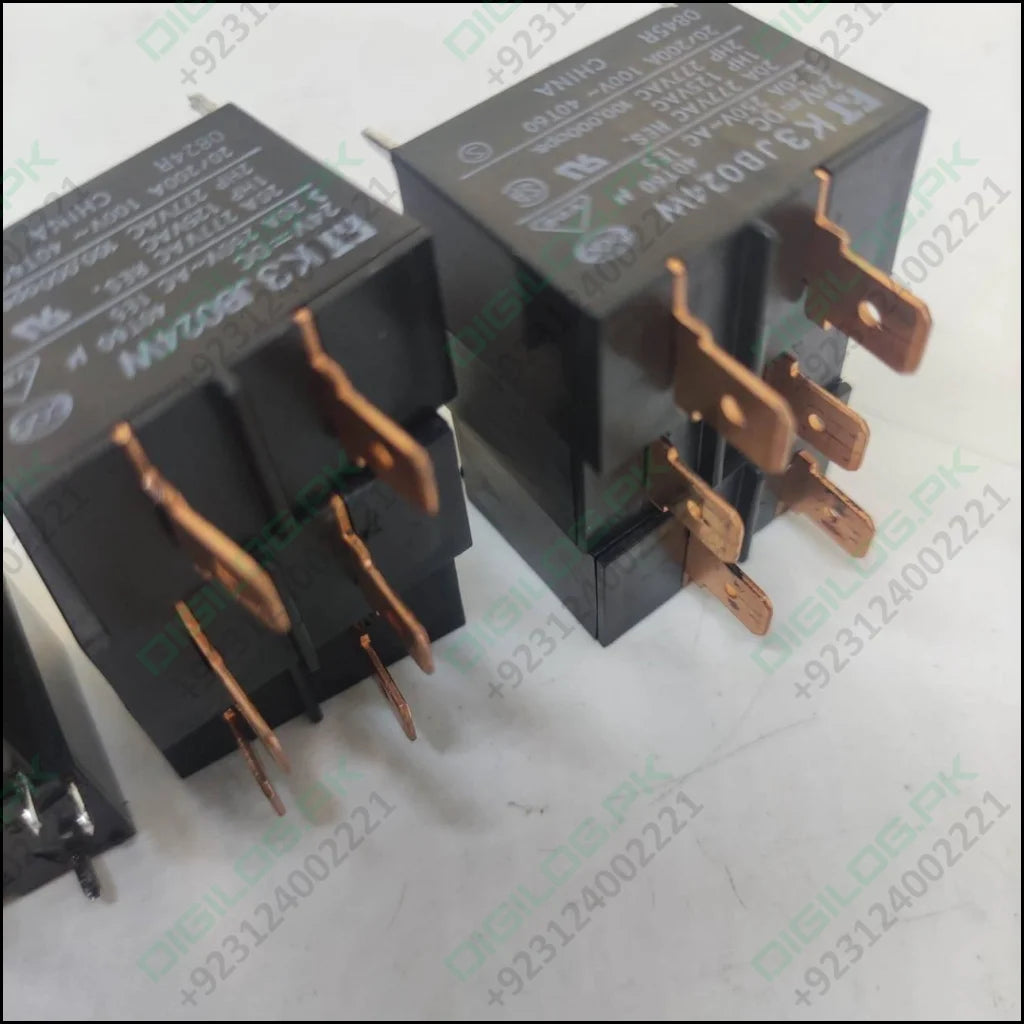

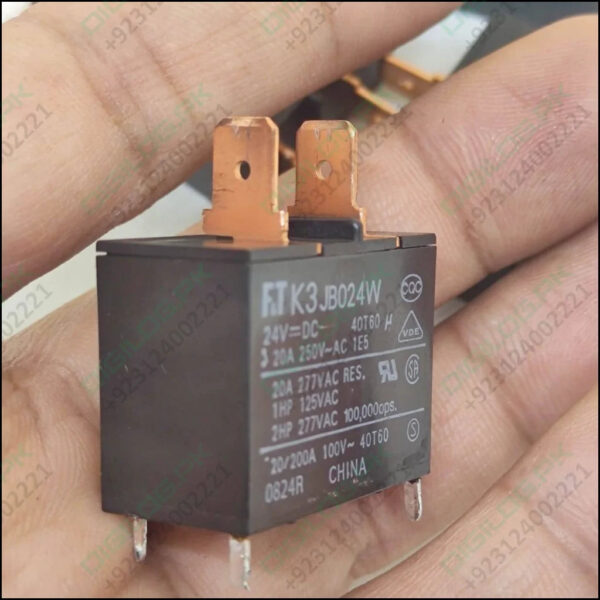

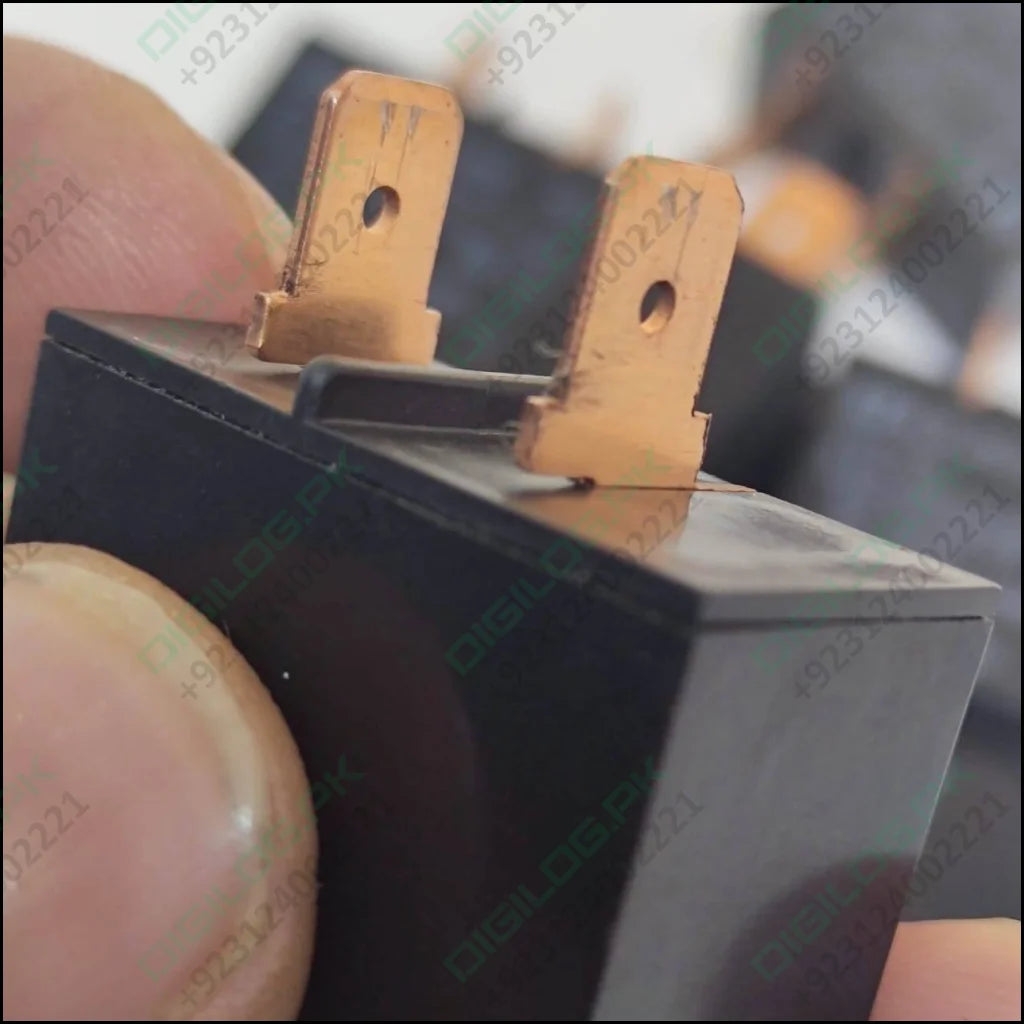

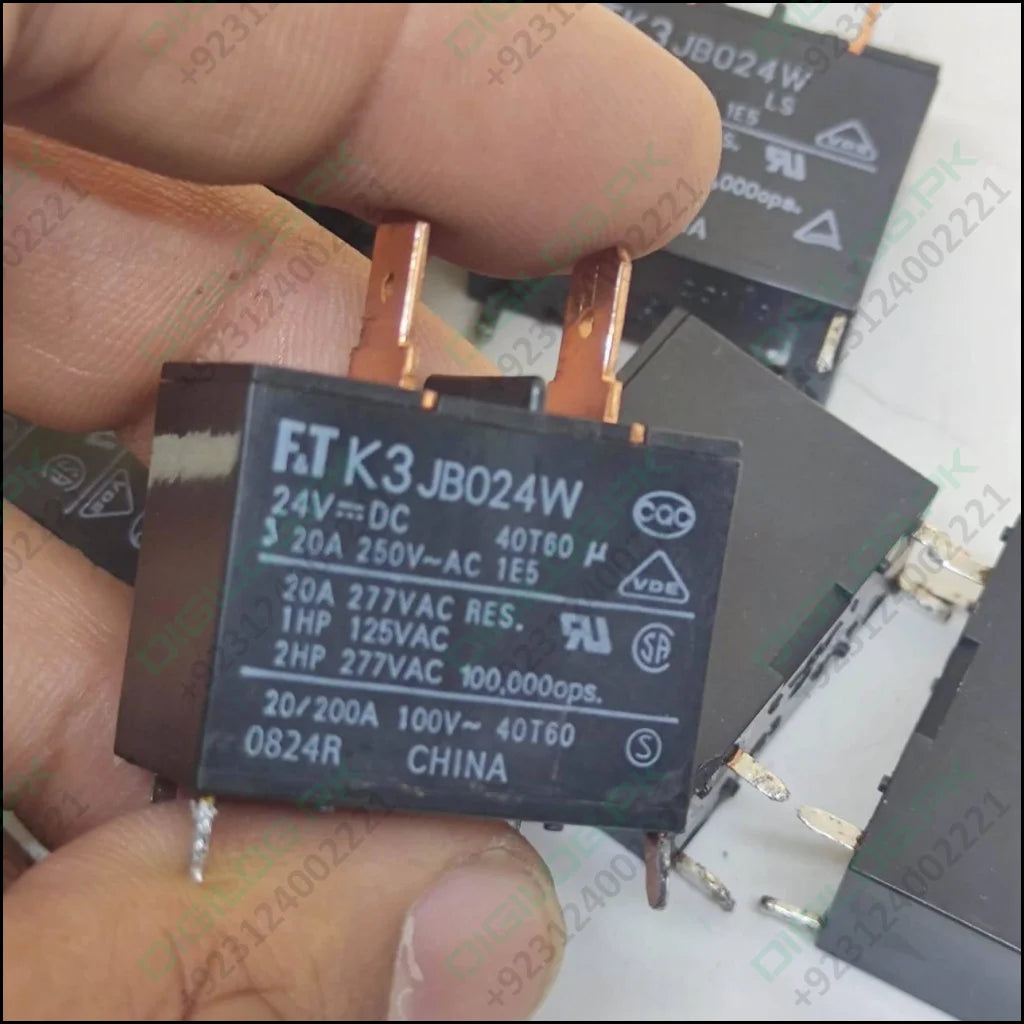

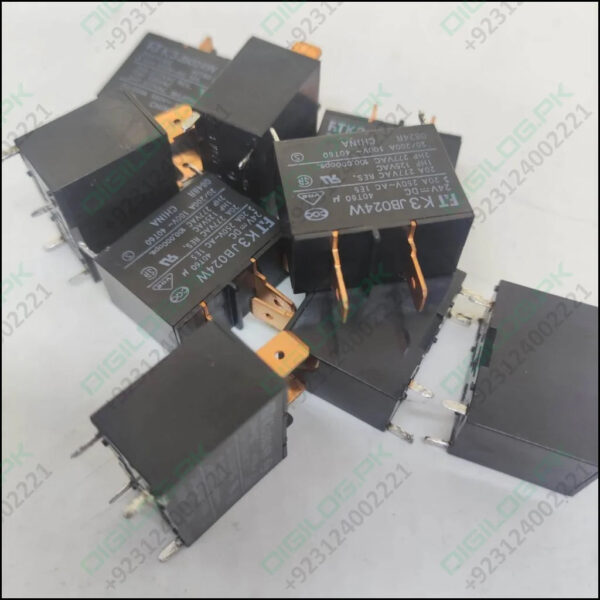

USED Fujitsu Japan JB024W 24V 20A Relay Switch High Current Relay POWER RELAY In Pakistan
₨ 150
- Description
- Reviews (0)
Description
Description
Power relay: 1 pole, 20A contact rating, coil values 5V to 24V, PCB TH and tab terminal mount, contact form 1A.
Datasheet: Download
Specificatiions:
- SPST 20A and #250 tab terminal type is also available
- Low coil power (780mW)
- Type of service: continuous duty
- Cadmium free contacts
- SAFETY STANDARDS UL, CSA, VDE,CQC approved
- RoHS compliant
| Coil Voltage (V) | 24 |
| Contact Arrangement | SPST |
| Switching Current (A) | 20 |
| Input Voltage (V) | 250 AC |
| Contact Material | Silver alloy |
| Mounting Type | Through hole |
| Termination | TAB |
| Current Rating (A) | 25 |
| Size | 15.7 x 23.3 x 23.3 mm |
| Latching | No |
| Nominal Coil Power (mW) | 780 |
| Coil Resistance (Ω) |
740 |
Power relay: 1 pole, 20A contact rating, coil values 5V to 24V, PCB TH and tab terminal mount, contact form 1A.
